SIDE WINDER PIPE SPREADER

SIDE WINDER PIPE SPREADER

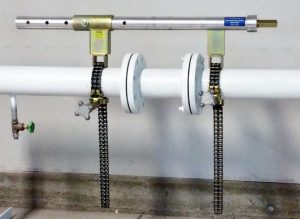

The SMP Side Winder is the only flange spreader designed specifically to spread lap joint flanges, slip on flanges and all other styles of flat faced flanges. The SMP Side Winder utilizes a pair of chain clamps and a tube attachment and drive screw assembly to effectively separate pipe flanges. The Side Winder attaches to the pipe on either side of the flanges with chain clamps and is operated by turning the main drive screw inside the pipe spreader tube. The SMP Side Winder creates up to 5,000 pounds of spread force and fits all flange styles with pipe diameters 2” through 18”. The SMP Side Winder comes in 2 different operating spans 5” through 30” and 5” through 42” each with 2 size models.



Ordering Information


Side Winder Pipe Spreaders 30”
Operating Span – 5” to 30”

ModelPipe Size
SMP30PS-02082” thru 8”
SMP30PS-101810” thru 18”

Side Winder Pipe Spreaders 42”
Operating Span – 5” to 42”

ModelPipe Size
SMP42PS-02082” thru 8”
SMP42PS-101810” thru 18”
